The Geometry Applet
began writing this applet in Feb. 1996. The current verion is 2.2 which fixes a couple of bugs in
2.0 and has a new construction to find harmonic conjugate points.
Version 2.0 (May, 1997) does three-dimensional constructions whereas the earlier version 1.3 only did
plane constructions. Version 2.0 also has many minor improvements. It takes a while to test
everything. Please send a note if you find any bugs. They'll be fixed as soon as possible. (Note
that arcs and sectors on slanted planes cannot yet be illustrated.)
Also, there may be still later versions than 2.2 with more functionality.
This geometry applet is being used to illustrate Euclid's Elements.

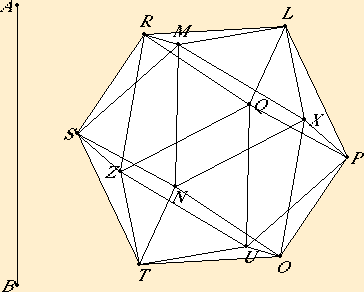

Above you see an icosahedron, that is, a regular 20-sided solid, constructed according to Euclid's
construction in proposition XIII.16.
Another example using this Geometry Applet illustrates the
Euler line of a triangle.
Here's how you can manipulate the figure that appears above.
If you click on a point in the figure, you can usually move it in some way.
A free point *, usually colored red, can be freely dragged about, and as they
move, the rest of the diagram (except the other free points)
will adjust appropriately. A sliding point *, usually colored orange, can
about like the free points, except their motion is limited to a straight
line, a circle, a plane, or a sphere, depending on the point.
Other points can be dragged to translate the entire diagram. But if a pivot point * appears, usually colored green, then
the diagram will be rotated and scaled around that pivot point.
Try dragging around some of the points in the diagram above.
Also, if you type r or the space key while the cursor is over the diagram, then
the diagram will be reset to its original configuration. If you type u or return the figure
will be lifted off the page into a separate window. Typing d or return while the cursor is
over the original window will return the diagram to the page. Note that you can resize the floating
window to make the diagram larger.
- background - the background color
- font - the font for displaying letters in the figure (default TimesRoman)
- fontsize - the size of the font for displaying letters (default 18)
- align - the alignment method for positioning letters
- title - the title of the figure, used for a floating frame
- debug - the debugging switch, by default, off
- pivot - the name of a pivot point, if any
- e[i] - an element. The elements are numbered from 1 on up.
The format for an element is a little complicated. Here's the specification for a typical
Each element has a number, a name, an element class, a construction method, and construction data.
Optionally colors may be specified. The number of this element is 1, which means that it is the first
element to be created. Its name is A. Its class is point. Its construction method is free, which
means it can be freely dragged about. Its construction data is 50,50, which means that it will be
initially placed at pixel coordinates (50,50). When it is displayed, its name A will be colored
black, but the dot representing the point will be magenta.
Element classes and construction methods
Elements come in eight different classes: point, line, circle, polygon, sector, plane, sphere, and
polyhedron. Each of these classes has several construction methods with over 60 construction methods
in all. Most of the construction methods can use more than one kind of list of construction data.
The eight tables briefly explaining these construction methods are found on a
(Several of the construction classes are supported by subclasses of the Element class as described
Each element may have up to four colors: first the color of the name of the element; second the color
of the 0-dimensional parts (points) of the element; third the color of the 1-dimensional parts (lines
or arcs) of the element; and fourth the color of the 2-dimensional parts (if any).
The background color and the colors of the elements can be declared in a couple of different ways. A
single word specifying the color may be given. These possible colors are *
black, * blue, * cyan, * darkGray, * gray, * green,
* lightGray, * magenta, * orange, * pink, * red,
* white, and * yellow. If the word "random" is
specified, then a randomly chosen pastel will be used. If an element is specified as "background",
then it will be given the background color; if "brighter", then a brighter version of the background;
if "darker", then a darker version of the background; and if "none" then it won't appear.
Specific colors may be given by their red, green, and blue components as six hex digits in an
Alternatively, a color can be given as a triple of decimal numbers separated by commas to indicate
hue (0 to 360), saturation (0 to 100), and brightness (0 to 100).
Currently, there are five values for alignment: ABOVE, RIGHT, BELOW, LEFT, and CENTRAL (the default).
For ABOVE alignment, the names of points appearing in the diagram will appear above points.
Analogously for RIGHT, BELOW, and LEFT. For CENTRAL alignment, letters will appear away from the
center of the diagram.
The Geometry Applet uses a
Slate Canvas put all the Elements on.
The slate can be lifted off into a separate window, and that uses
ClientFrame, a subclass of Frame.
An Element is a generic thing which is subclassed
in eight different ways to give actual elements that can be displayed.
These eight classes are further subclassed, too.
- PointElement with subclasses
- LineElement with subclasses
- CircleElement with subclasses
- PolygonElement with subclasses
- SectorElement with subclass
- PlaneElement with subclasses
- PolyhedronElement with subclasses
The source files *.java are zipped in the file source.zip. The class files
*.class are zipped, but uncompressed, in the file Geometry.zip.
David E. Joyce
Department of Mathematics and Computer Science
Worcester, MA 01610
